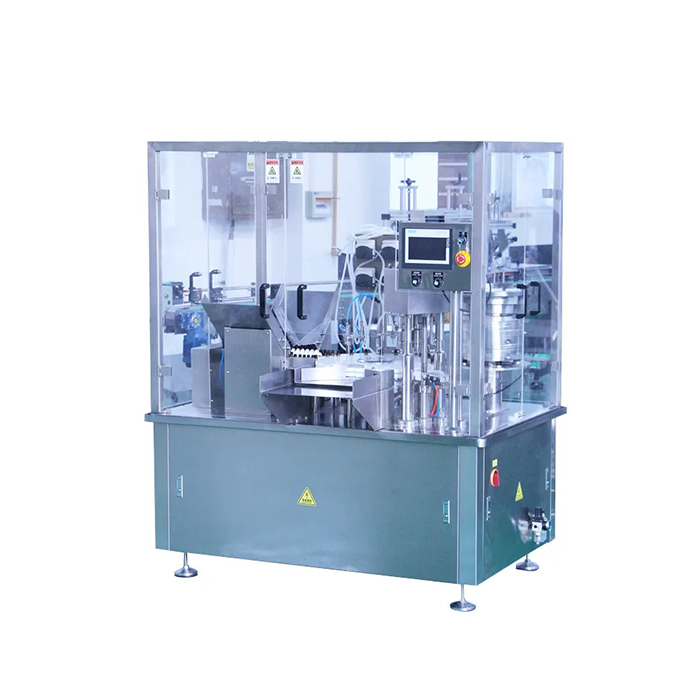

2-in-1 Automatic Bottle Filling And Capping Machine For Cecair

2-in-1 botol automatik mengisi dan menutup mesin untuk cecair

1. The material which contact directly with the oil is the SUS304 (GMP), made in China.

2. The 3-in-1 is mainly used to food, daily,cosmetic Paste filling and capping.

3. Mesin pengisian mengamalkan komponen elektrik jenama terkenal di dunia, kadar kegagalan yang rendah, prestasi yang boleh dipercayai, hayat perkhidmatan yang panjang.

4. Kelantangan mengisi dan pengisian kelajuan yang mudah dengan paparan skrin sentuh, rupa yang cantik.

5. Terdapat fungsi tiada botol tidak mengisi, tahap kawalan automatik cecair pengisian. Tidak perlu menukar bahagian, pelbagai bentuk botol spesifikasi boleh berubah dengan sangat cepat tanpa memerlukan perubahan bahagian.

6. Kepala pengisian dilengkapi dengan pencegah semburan khas, tidak mengisi kabel, fenomena menetes.

Proses kerja:

---

Barisan pengisian automatik mempunyai sistem servo. Buatan meletakkan botol kosong di tali pinggang penghantar, secara automatik memasukkan garis pengisian sesuai dengan perintah oleh sistem kawalan PLC, kemudian mengisi bahan pengisian.

Konfigurasi:

---

1. Bahan Mesin: SUS304

2. Bahan Hubungi: SUS316

3. Bahagian Rehat Bahan: alumina yang tegar

4. Mengisi Servo Motor: Taiwan TECO

5. Sistem Kawalan PLC: Siemens

6. Skrin Sentuh: Siemens

7. Komponen Sensor fotoelektrik: Korea AUTONICS

8. Alat Elektrik Rendah Voltan: Schneider

Parameter Teknikal

---

Mengisi Volum	100-200ml (boleh disesuaikan untuk saiz anda)	Kuasa mesin	1.5KW
Mengisi kelajuan	40-60B / M	Voltan bekalan	AC 220 / 380V 50 / 60hz
Pengisian Ketepatan	+-0.5%	Berat Mesin	360KGS
Tekanan udara	0.4-0.6MPa	Saiz mesin	3500 * 1580 * 2190mm

Butiran Cepat

---

Jenis: Mesin Pengisian
Keadaan: Baru
Permohonan: Minuman, Kimia, Komoditi, Makanan, Perubatan
Jenis Pembungkusan: Botol, Tin, Karton, Kes, Pek Berdiri
Bahan Pembungkusan: Kaca, Logam, Plastik
Gred automatik: Automatik
Pemacu Jenis: Elektrik & Udara
Voltan: 220V / 380V
Kuasa: 1.6KW
Tempat asal: Shanghai, China (tanah besar)
Nama Jenama: VKPAK
Dimensi (L * W * H): 2200X2100X2200MM
Berat: 450kg
Persijilan: CE ISO
Perkhidmatan selepas jualan yang disediakan: Jurutera yang tersedia untuk jentera perkhidmatan di luar negara
Nama produk: 2-in-1 botol automatik mengisi dan menutup mesin untuk cecair
Bahan: SUS304 / 316
Fungsi: pengisi cecair
Penggunaan: Pembungkusan Minuman
Bahan pengisian: Mengalir Cecair
Jenis botol: Botol bulat
Kapasiti: 40-150B / M
Waranti: 12 Bulan

---

A 2-in-1 automatic bottle filling and capping machine for liquid is a piece of equipment used for filling bottles with liquid and then capping them. The filling and capping process is done automatically, which saves time and reduces the need for labor. This machine is used in various industries, including food and beverage, pharmaceuticals, and cosmetics.

The filling part of the machine works by using a volumetric filling method to fill the bottles with the liquid product. The volumetric filling method ensures that the bottles are filled with the correct amount of product, which is important in industries where the correct dosage is crucial. The machine can fill a range of bottle sizes and types, making it versatile for use in different industries.

The capping part of the machine uses a mechanical method to place the caps on the filled bottles. The caps can be of different sizes and shapes depending on the type of product being packaged. This machine ensures that the caps are securely placed on the bottles to prevent any leaks or spills.

The 2-in-1 automatic bottle filling and capping machine is an essential piece of equipment for any manufacturing process that involves liquid products. It can increase productivity, reduce labor costs, and ensure that the products are packaged consistently and correctly. The machine is easy to operate and can be customized to meet the specific needs of the business, making it a valuable investment.
