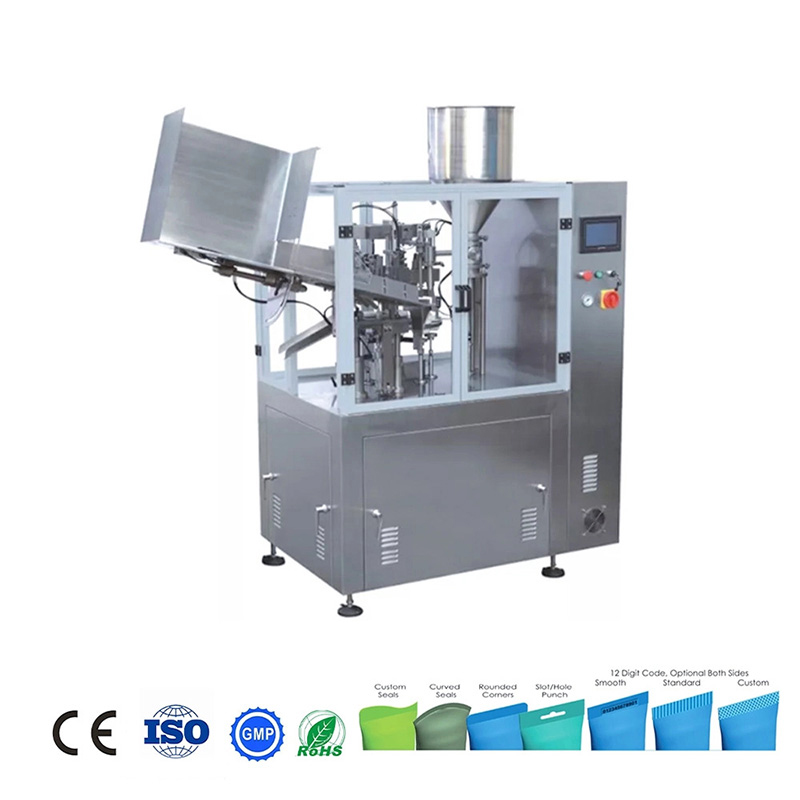

Pengeluar Mesin Pembungkusan Tube Krim Pengilang

Penerangan Produk:

---

Mesin ini adalah peralatan teknikal tinggi yang berjaya dibangunkan dan direka dengan memperkenalkan teknologi luar negara maju dan mengintegrasikan keperluan GMP, dengan ciri-ciri struktur yang adil, fungsi penuh, operasi mudah, mengisi yang tepat, berjalan lancar, serta bunyi yang rendah. Ia mengadaptasi dengan pengawal PLC, beroperasi secara automatik dari bahan cecair atau bahan api yang tinggi sehingga mencetak nombor percetakan (termasuk tarikh pembuatan), peralatan yang ideal untuk tabung ALU, tiub plastik dan beberapa tiub mengisi dan menutup dalam kosmetik, farmasi, bahan makanan, perekat dll industri, mematuhi standard GMP.

Ciri-ciri:

---

1. Skrin operasi gred tinggi dengan paparan LCD PLC dan butang, operasi mudah dan lebih humanisasi Dengan menyesuaikan laju kelajuan, set parameter, keluar mengira kiraan, indeks tekanan dan paparan kegagalan.
2. Menjalankan bekalan tiub secara automatik, daftar fotoelektron, pengisian gas lengai (pilihan), mengisi dan penyegelan bahan, percetakan nombor batch, keluaran produk akhir.
3. Regangan fotoelektrik berketepatan tinggi mengurangkan skop penyimpangan kromatik.
4. Bahagian penyesuaian luaran dalam kedudukan, kedudukan paparan digital, penyesuaian yang mudah dan tepat (sesuai untuk menghasilkan pelbagai produk).
5. Mekanikal, fotoelektron, elektrik, kawalan integratif pneumatik, mencapai tiada tiub tiada fungsi pengisian; Menunggu jika kedudukan atau tekanan ralat tiub atau tekanan terlalu rendah, mesin berhenti automatik jika membuka pintu pelindung.

Model	GF-400 A	GF-400 B
Bahan tiub	Tiub logam, tiub ALU	Tiub plastik, tiub Kompaun
Diameter tiub	10-42 mm	10-60 mm
Panjang tiub	50-250 (disesuaikan)	50-250 (disesuaikan)
Mengisi kelantangan	5-500ml / cawangan (laras)	5-800ml / cawangan (laras)
Ketepatan pengisian	≤ ± 1%	≤ ± 1%
Kelajuan	3-10 r / min	2.5-7 r / min
Keupayaan produk	30-60 Pc / min	30-60 Pc / min
Bekalan udara	0.55-0.65mpa	0.55-0.65mpa
Kuasa motor	2kw (380V / 220V 50Hz)	2kw (380V / 220V 50Hz)
Kuasa pengedap haba	3KW	3KW
Dimensi keseluruhan	2620 × 1020 × 1980 mm	2620 × 1020 × 1980 mm
Berat mesin	1100 kg	1100 kg

Info asas

---

Permohonan: Tampal
Pembentukan Spesies: Pembentukan Botol
Pemacu Jenis: Elektrik
Pembungkusan: tiub lembut
Motor Kuasa: 2kw (380V / 220V 50Hz)
Keseluruhan Dimensi: 2620 × 1020 × 1980mm
Trademark: VKPAK
Asal: Shanghai, China
Gred automatik: Automatik
Jenis: Pengisi dan Mesin Pengedap
Membentuk Fungsi: Pengisian
Jenis Bahan: Tampal
Kapasiti Produk: 30-60 PC / Min
Heat Sealing Power: 3kw
Mesin Berat: 1100kg
Spesifikasi: CE

---

A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.

The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:

High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.

Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.

Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.

Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.

High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.

Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
