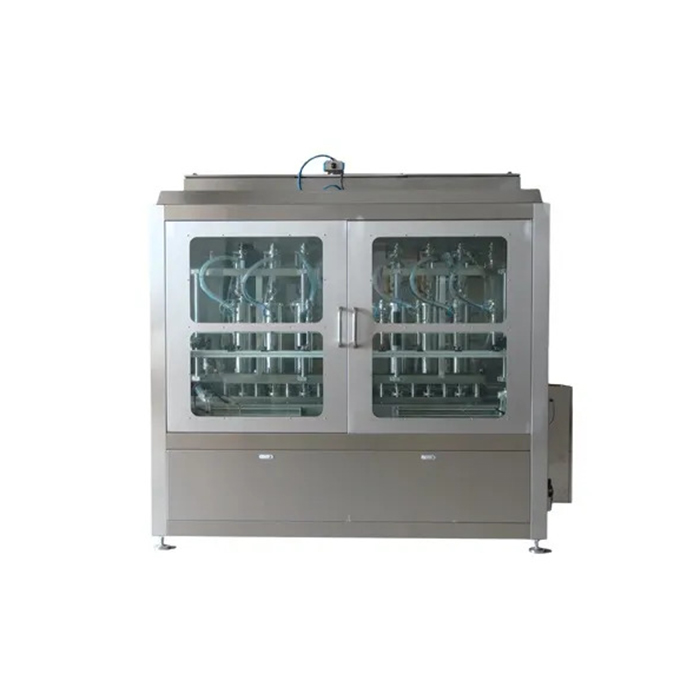

Mesin Pengisian Botol PET Automatik / Talian Pembotolan / Projek

Mesin tiga-dalam-satu untuk botol PET menggabungkan fungsi membilas, mengisi dan menutup bersama. Berdasarkan teknologi canggih di luar negara, dan direka mengikut permintaan pengisian air mengisi

Ciri-ciri utama

---

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Jumlah kedudukan kerja	Membilas 32, mengisi 32, tutup 10
Kapasiti pengeluaran	15000BPH (500ml)
Tekanan sumber udara	0.7Mpa
Penggunaan udara	1.2m3 / min
Membasuh tekanan air	0.2-0.25Mpa
Membilas kapasiti air	2.5T / H
Kuasa motor utama	3.2kW
Jumlah kuasa	4.8kw
Dimensi	4250X2150X2200mm (L × W × H)
berat badan	5200kg

Kami juga menyediakan Loji Botol Air Tulen Automatik Lengkap

Ia termasuk 4 bahagian utama:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Penerangan lengkap baris utama:

---

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Model dan Senarai Kelajuan

---

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Basuh tangan	8	14	16	24	32
Mengisi injap	8	12	16	24	32
Melekatkan tangan	3	5	5	8	10
Botol PET / Kaca yang sesuai (150ml hingga 2000ml)
Kapasiti (Kelajuan) Berdasarkan pada 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Pembekal Jenama Komponen Elektrik

---

Komposisi utama	Pembekal Penerangan
PLC	Mitsubishi (Jepun), Siemens (Jerman)
Skrin sentuh	Weinview (Taiwan)
Penukar kekerapan	Mitsubishi (Jepun), Siemens (Jerman)
Suis udara	Schneider (Perancis)
Pemutus	Siemens (Jerman)
Contactor	Siemens (Jerman)
Suis fotoelektrik	Omron (Jepun)

Butiran Cepat

---

Jenis: Mesin Pengisian
Keadaan: Baru
Permohonan: Minuman, Kimia, Perubatan
Jenis Pembungkusan: Botol
Bahan Pembungkusan: Plastik
Gred automatik: Automatik
Pemacu Jenis: Elektrik
Voltan: 380V / 220V
Kuasa: 4.8KW
Tempat asal: Shanghai, China (tanah besar)
Nama Jenama: VKPAK
Dimensi (L * W * H): 4250X2150X2200mm
Berat: 5200KGS
Persijilan: CE, ISO, SGS
Perkhidmatan selepas jualan yang disediakan: Jurutera yang tersedia untuk jentera perkhidmatan di luar negara
Kilang: MAINTENANCE LINKS
Saiz Botol: 150ml hingga 2000ml
Botol Leher Diameter: 15-55mm
Bahan Botol: Plastik / Kaca
Kelajuan (berdasarkan botol 500ml): 15000B / H
Sistem Kawalan: Skrin Sentuh PLC (MITSUBISHI JAPAN)
Cap: Skru / Cap Tekan
Lif cap: Memiliki
Mengisi Cecair: Air Mineral / Murni

---
